BCZ Micro Grain Ball End Mills

BCZ Micro Grain Ball End Mills
    Enlargement
    Product Name : BCZ Micro Grain Ball End Mills
    Product Description

    FEATURES:

    Generally used on wide range of every kind machining. With benefits of fracture resistance and strong edge. Coated Tialn for maximum heat and wear resistance. Provide maximum hardness and fracture resistance.

    Product Introduction

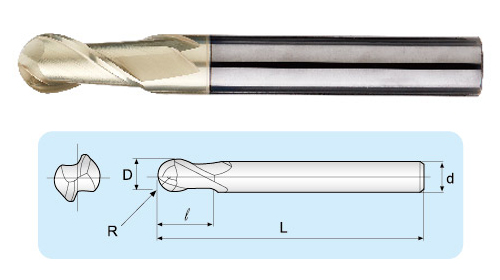

    Type No Diameter(D) Flute Length (l) O. A. L.(L) Shank Dia(d) Price
    BCZ0101042 0.5 R 2 50 4 480
    BCZ0151042 0.75 R 3 50 4 480
    BCZ0201042 1 R 4 50 4 480
    BCZ0251042 1.25 R 5 50 4 480
    BCZ0301042 1.5 R 6 50 4 480
    BCZ0351042 1.75 R 7 50 4 480
    BCZ0401042 2 R 8 50 4 480
    BCZ0451062 2.25 R 9 50 6 525
    BCZ0501062 2.5 R 10 50 6 525
    BCZ0551062 2.75 R 11 50 6 525
    BCZ0601062 3 R 12 50 6 525
    BCZ0652082 3.25 R 13 60 8 950
    BCZ0702082 3.5 R 14 60 8 950
    BCZ0752082 3.75 R 15 60 8 950
    BCZ0802082 4 R 16 60 8 950
    BCZ0903102 4.5 R 18 75 10 1400
    BCZ1003102 5 R 20 75 10 1400
    BCZ1103122 5.5 R 22 75 12 1850
    BCZ1203122 6 R 24 75 12 1850
    BCZ1404162 7 R 28 100 16 6000
    BCZ1604162 8 R 32 100 16 6000
    BCZ18041202 9 R 36 100 20 8000
    BCZ2004202 10 R 40 100 20 8000
    BCZ2505252 12.5 R 50 150 25 -



    Applicability Work Material
    ★ ★ ★ Steel, Carbon steel S15C
    ★ ★ ★ Steel, Carbon steel S45C
    ★ ★ Hardened S45C
    ★ Steel, Carbon steel S75C
    Hardened S75C
    ★ ★★ Low allow steel SCM, SNCM
    ★ Hardened SCM, SNCM
    Hardened SCM, SNCM
      Hardened SCM, SNCM
    ★ ★ High allow steel SKD, SKT, SKH
    Hardened SKD, SKT, SKH
    ★ Stainless steel SUS403
    ★ Stainless steel SUS403
    ★ Stainless steel SUS304, SUS316
    ★★★ Cast iron
    ★ Nodular cast iron
    Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
