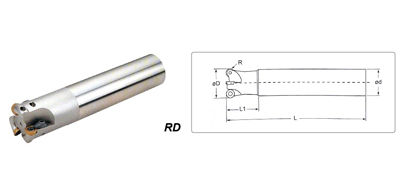

Corner Radius Endmill
Enlargement
| ⌀D | ⌀d | R | L1 | L | Number of Flutes | 刀片Type No | 刀片螺絲 | 壓板 | 壓板螺絲 | 扳手 |
| 12 | 12 | 2.5 | 30 | 100 | 3 | RDWH0501 | SCR-RD2.0 | － | － | T6 |
| 13 | 12 | 2.5 | 30 | 100 | 3 | |||||
| 16 | 16 | 3.5 | 30 | 150 | 3 | |||||
| 17 | 16 | 3.5 | 30 | 150 | 3 | RDWH0702 | SCR-RD2.5 | － | － | T8 |
| 17 | 16 | 3.5 | 30 | 200 | 3 | |||||
| 20 | 20 | 3.5 | 30 | 150 | 3 | |||||
| 21 | 20 | 3.5 | 30 | 150 | 3 | |||||
| 21 | 20 | 3.5 | 30 | 200 | 3 | |||||
| 25 | 25 | 3.5 | 30 | 150 | 4 | |||||
| 26 | 25 | 3.5 | 30 | 150 | 4 | |||||
| 26 | 25 | 3.5 | 30 | 200 | 4 | |||||
| 35 | 32 | 5 | 50 | 150 | 3 | RDWH1003 | SCR-RD3.5 | CL-RD10 | SCR-RD3.5 | T15 |
| 35 | 32 | 5 | 50 | 200 | 3 | |||||
| 35 | 32 | 5 | 50 | 250 | 3 | |||||
| 35 | 32 | 5 | 50 | 300 | 3 | |||||
| 35 | 32 | 5 | 50 | 150 | 4 | |||||
| 35 | 32 | 5 | 50 | 200 | 4 |
