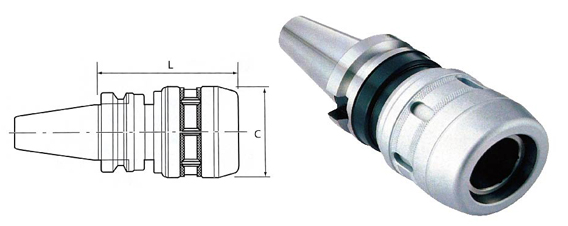

DCM Heavy-duty Tool Holder
Enlargement| Type No | Clamping capacity | L | C | COLLET |
|---|---|---|---|---|
| BT30-DCM16-70 | 4~16 | 70 | 42 | C16 |
| BT40-DCM16-75 | 4~16 | 75 | 42 | C16 |
| BT40-DCM16-90 | 4~16 | 90 | 42 | C16 |
| BT40-DCM16-105 | 4~16 | 105 | 42 | C16 |
| BT50-DCM16-105 | 4~16 | 105 | 42 | C16 |
| BT50-DCM16-135 | 4~16 | 135 | 42 | C16 |
| BT50-DCM16-165 | 4~16 | 165 | 42 | C16 |
| BT50-DCM16-200 | 4~16 | 200 | 42 | C16 |
| BT30-DCM20-80 | 6~20 | 80 | 52 | C20 |
| BT40-DCM20-75 | 6~20 | 75 | 52 | C20 |
| BT40-DCM20-105 | 6~20 | 105 | 52 | C20 |
| BT40-DCM20-135 | 6~20 | 135 | 52 | C20 |
| BT50-DCM20-105 | 6~20 | 105 | 52 | C20 |
| BT50-DCM20-135 | 6~20 | 135 | 52 | C20 |
| BT50-DCM20-165 | 6~20 | 165 | 52 | C20 |
| BT50-DCM20-200 | 6~20 | 200 | 52 | C20 |
| BT30-DCM25-80 | 6~25 | 80 | 60 | C25 |
| BT40-DCM25-75 | 6~25 | 75 | 60 | C25 |
| BT40-DCM25-105 | 6~25 | 105 | 60 | C25 |
| BT50-DCM25-105 | 6~25 | 105 | 60 | C25 |
| BT50-DCM25-135 | 6~25 | 135 | 60 | C25 |
| BT50-DCM25-165 | 6~25 | 165 | 60 | C25 |
| BT50-DCM25-200 | 6~25 | 200 | 60 | C25 |
| BT30-DCM32-100 | 6~32 | 100 | 68 | C32 |
| BT40-DCM32-105 | 6~32 | 105 | 68 | C32 |
| BT40-DCM32-135 | 6~32 | 135 | 68 | C32 |
| BT50-DCM32-105 | 6~32 | 105 | 68 | C32 |
| BT50-DCM32-135 | 6~32 | 135 | 68 | C32 |
| BT50-DCM32-165 | 6~32 | 165 | 68 | C32 |
| BT50-DCM32-200 | 6~32 | 200 | 68 | C32 |
