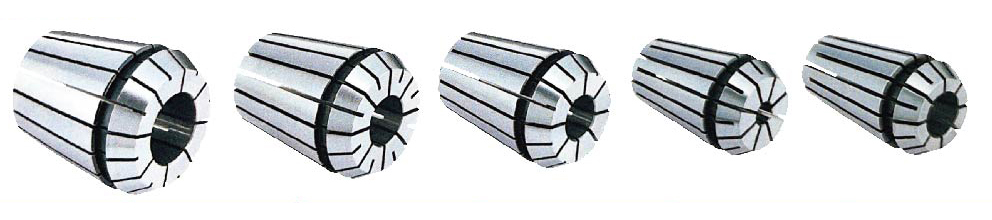

    Product Name : ER Collet

    ER11 ER16 ER20 ER25 ER32 ER40
    Type No Range(mm) Type No Range(mm) Type No Range(mm) Type No Range(mm) Type No Range(mm) Type No Range(mm)
    ER11-1.0 1.0-0.5 ER16-1.0 1.0-0.5 ER20-2 2-1 ER25-2 2-1 ER32-3 3-2 ER40-3 3-2
    ER11-1.5 1.5-1.0 ER16-2 2-1 ER20-3 3-2 ER25-3 3-2 ER32-4 4-3 ER40-4 4-3
    ER11-2.0 2.0-1.5 ER16-3 3-2 ER20-4 4-3 ER25-4 4-3 ER32-5 5-4 ER40-5 5-4
    ER11-2.5 2.5-2.0 ER16-4 4-3 ER20-5 5-4 ER25-5 5-4 ER32-6 6-5 ER40-6 6-5
    ER11-3.0 3.0-2.5 ER16-5 5-4 ER20-6 6-5 ER25-6 6-5 ER32-7 7-6 ER40-7 7-6
    ER11-3.5 3.5-3.0 ER16-6 6-5 ER20-7 7-6 ER25-7 7-6 ER32-8 8-7 ER40-8 8-7
    ER11-4.0 4.0-3.5 ER16-7 7-6 ER20-8 8-7 ER25-8 8-7 ER32-9 9-8 ER40-9 9-8
    ER11-4.5 4.5-4.0 ER16-8 8-7 ER20-9 9-8 ER25-9 9-8 ER32-10 10-9 ER40-10 10-9
    ER11-5.0 5.0-4.5 ER16-9 9-8 ER20-10 10-9 ER25-10 10-9 ER32-11 11-10 ER40-11 11-10
    ER11-5.5 5.5-5.0 ER16-10 10-9 ER20-11 11-10 ER25-11 11-10 ER32-12 12-11 ER40-12 12-11
    ER11-6.0 6.0-5.5 ER16-2.5 2.5-2.0 ER20-12 12-11 ER25-12 12-11 ER32-13 13-12 ER40-13 13-12
    ER11-6.5 6.5-6.0 ER16-3.5 3.5-3.0 ER20-13 13-12 ER25-13 13-12 ER32-14 14-13 ER40-14 14-13
    ER11-7.0 7.0-6.5 ER16-4.5 4.5-4.0 ER20-2.5 2.5-2.0 ER25-14 14-13 ER32-15 15-14 ER40-15 15-14
    ER16-5.5 5.5-5.0 ER20-3.5 3.5-3.0 ER25-15 15-14 ER32-16 16-15 ER40-16 16-15
    ER16-6.5 6.5-6.0 ER20-4.5 4.5-4.0 ER25-16 16-15 ER32-17 17-16 ER40-17 17-16
    ER16-7.5 7.5-7.0 ER20-5.5 5.5-5.0 ER32-18 18-17 ER40-18 18-17
    ER16-8.5 7.5-8.0 ER20-6.5 6.5-6.0 ER32-19 19-18 ER40-19 19-18
    ER16-9.5 9.5-9.0 ER20-7.5 7.5-7.0 ER32-20 20-19 ER40-20 20-19
    ER20-8.5 8.5-8.0 ER40-21 21-20
    ER20-9.5 9.5-9.0 ER40-22 22-21
    ER20-10.5 10.5-10.0 ER40-23 23-22
    ER20-11.5 11.5-11.0 ER40-24 24-23
    ER20-12.5 12.5-12.0 ER40-25 25-24
    ER40-26 26-25

    Type ER11 ER16 ER20 ER21 ER22 ER23
    C1 11.5 17 21 26 33 41
    L 18 27 31 35 40 46

    D(mm) L DIN6499
    class classA classG
    1.0-1.4 6 0.015 0.01 0.005
    1.5-2.9 10 0.015 0.01 0.005
    3.0-5.9 16 0.015 0.01 0.005
    6.0-9.9 25 0.015 0.01 0.005
    10.0-17.9 40 0.02 0.015 0.01
    18.0-26.9 50 0.02 0.015 0.01
    27.0-34.9 60 0.02 0.015 0.01
