    Product Name : ER Milling Chuck

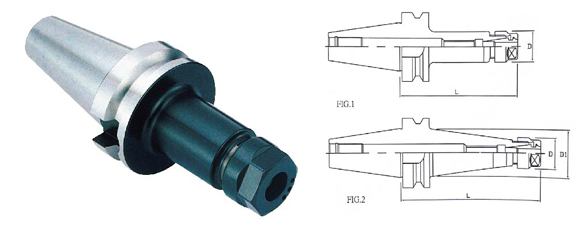

    Type No Fig 支持能力 L D D1 COLLET TYPE
    BT30-ER11-60 1 0.5-7 60 19 ER-11
    BT30-ER11-60-M 1 0.5-7 60 19 ER-11
    BT30-ER11-80 1 0.5-7 80 19 ER-11
    BT30-ER11-80-M 1 0.5-7 80 16 22 ER-11
    BT30-ER11-100 1 0.5-7 100 19 ER-11
    BT30-ER11-100-M 1 0.5-7 100 16 19 ER-11
    BT30-ER16-60 1 0.5-10 60 28 ER-16
    BT30-ER16-70 1 0.5-10 70 28 ER-16
    BT30-ER16-80 1 0.5-10 80 28 ER-16
    BT30-ER16-100 1 0.5-10 100 28 ER-16
    BT30-ER16-100-M 1 0.5-10 100 23 25 ER-16
    BT30-ER20-60 1 1-13 60 34 ER-20
    BT30-ER20-70 1 1-13 70 34 ER-20
    BT30-ER20-80 1 1-13 80 34 ER-20
    BT30-ER20-100 1 1-13 100 34 ER-20
    BT30-ER20-100-M 2 1-13 100 28 ER-20
    BT30-ER20-135 2 1-13 135 34 32 ER-20
    BT30-ER25-60 1 1-16 60 42 40 ER-25
    BT30-ER25-70 1 1-16 70 42 ER-25
    BT30-ER25-80 1 1-16 80 42 ER-25
    BT30-ER32-60 1 2-20 60 50 ER-32
    BT30-ER32-80 1 2-20 80 50 ER-32
    BT30-ER32-100 1 2-20 100 50 ER-32
    BT30-ER40-70 1 2-26 70 63 ER-40
    BT40-ER11-70 1 0.5-7 70 19 ER-11
    BT40-ER11-100 1 0.5-7 100 19 ER-11
    BT40-ER11-100-M 2 0.5-7 100 16 20 ER-11
    BT40-ER16-70 1 0.5-10 70 28 ER-16
    BT40-ER16-100 1 0.5-10 100 28 ER-16
    BT40-ER16-100-M 2 0.5-10 100 23 25 ER-16
    BT40-ER16-125 1 0.5-10 125 28 ER-16
    BT40-ER16-125-M 2 0.5-10 125 23 25 ER-16
    BT40-ER16-150 2 0.5-10 150 28 32 ER-16
    BT40-ER16-150-M 2 0.5-10 150 23 ER-16
    BT40-ER16-200 2 0.5-10 200 28 34 ER-16
    BT40-ER20-70 1 1-13 70 34 ER-20
    BT40-ER20-100 1 1-13 100 34 ER-20
    BT40-ER20-125 1 1-13 125 34 ER-20
    BT40-ER20-125-M 1 1-13 125 28 32 ER-20
    BT40-ER20-150 2 1-13 150 34 40 ER-20
    BT40-ER20-200 2 1-13 200 34 42 ER-20
    BT40-ER25-70 1 1-16 70 42 ER-25
    BT40-ER25-100 1 1-16 100 42 ER-25
    BT40-ER25-125 1 1-16 125 42 ER-25
    BT40-ER25-150 1 1-16 150 42 48 ER-25
    BT40-ER25-200 1 1-16 200 42 50 ER-25
    BT40-ER32-70 1 2-20 70 50 ER-32
    BT40-ER32-100 1 2-20 100 50 ER-32
    BT40-ER32-125 1 2-20 125 50 ER-32
    BT40-ER32-150 2 2-20 150 50 55 ER-32
    BT40-ER32-200 2 2-20 200 50 55 ER-32
    BT40-ER40-80 1 2-26 80 63 ER-40
    BT40-ER40-100 1 2-26 100 63 ER-40
    BT40-ER40-125 1 2-26 125 63 ER-40
    BT40-ER40-150 1 2-26 150 63 ER-40
    BT40-ER40-200 1 2-26 200 63 ER-40
    BT50-ER16-100 1 0.5-10 100 28 ER-16
    BT50-ER16-125 1 0.5-10 125 28 ER-16
    BT50-ER16-150 2 0.5-10 150 28 32 ER-16
    BT50-ER16-200 2 0.5-10 200 28 34 ER-16
    BT50-ER16-250 2 0.5-10 250 28 36 ER-16
    BT50-ER20-100 1 1-13 100 34 ER-20
    BT50-ER20-100-M 1 1-13 100 28 ER-20
    BT50-ER20-125 1 1-13 125 34 ER-20
    BT50-ER20-150 2 1-13 150 34 40 ER-20
    BT50-ER20-150-M 2 1-13 150 28 32 ER-20
    BT50-ER20-200 2 1-13 200 34 42 ER-20
    BT50-ER20-250 2 1-13 250 34 45 ER-20
    BT50-ER20-300 2 1-13 300 34 48 ER-20
    BT50-ER25-100 1 1-16 100 42 ER-25
    BT50-ER25-12511-1612542ER-25
    BT50-ER25-15011-1615042ER-25
    BT50-ER25-20021-162004246ER-25
    BT50-ER25-25021-162504248ER-25
    BT50-ER25-30021-163004252ER-25
    BT50-ER32-10012-2010050ER-32
    BT50-ER32-12512-2012550ER-32
    BT50-ER32-15012-201505055ER-32
    BT50-ER32-20022-202005058ER-32
    BT50-ER32-25022-202505060ER-32
    BT50-ER32-30022-203005060ER-32
    BT50-ER40-8012-268063ER-40
    BT50-ER40-10012-2610063ER-40
    BT50-ER40-125126-2612563ER-40
    BT50-ER40-15012-2615063ER-40
    BT50-ER40-20012-262006366ER-40
    BT50-ER40-25022-262506368ER-40
