GCA 2-flutes Micro Grain End Mills

GCA 2-flutes Micro Grain End Mills
    Enlargement
    Product Name : FGZ Micro Grain End Mills
    Product Description

    FEATURES:

    "Helix angle 45°, less cutting drag,more effective working, best for working on stainless steel, high alloysteel, harden steel, and difficult-machine materials. Coated Tialn formaximum heat and wear resistance provide maximum hardness and fracture resistance."

    Product Introduction

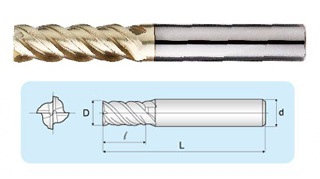

    Type No Diameter(D) Flute Length(l) O. A. L.(L) Shank Dia(d) Price
    FGZ0101044 1.0 3.0 50 4 450
    FGZ0151044 1.5 4.5 50 4 450
    FGZ0201044 2.0 6.0 50 4 450
    FGZ0251044 2.5 7.5 50 4 450
    FGZ0301044 3.0 9.0 50 4 450
    FGZ0351044 3.5 10.5 50 4 450
    FGZ0401044 4.0 12.0 50 4 450
    FGZ0451044 4.5 13.5 50 4 510
    FGZ0501044 5.0 15.0 50 6 510
    FGZ0551064 5.5 16.5 50 6 510
    FGZ0602084 6.0 18.0 60 8 1010
    FGZ0652084 6.5 19.5 60 8 1010
    FGZ0702084 7.0 21.0 60 8 1010
    FGZ0752084 7.5 22.5 60 8 1010
    FGZ0802084 8.0 24.0 60 8 1010
    FGZ0853104 8.5 25.5 75 10 1560
    FGZ0903104 9.0 27.0 75 10 1560
    FGZ0953104 9.5 28.5 75 10 1560
    FGZ1003104 10.0 30.0 75 10 1560
    FGZ1053124 10.5 31.5 75 12 2100
    FGZ1103124 11.0 33.0 75 12 2100
    FGZ1153124 11.5 34.5 75 12 2100
    FGZ1203124 12.0 36.0 75 12 2100
    FGZ1304164 13.0 39.0 100 16 5340
    FGZ1404164 14.0 42.0 100 16 5340
    FGZ1504164 15.0 45.0 100 16 5340
    FGZ1604164 16.0 48.0 100 16 5340
    FGZ1804204 18.0 50.0 100 20 7440
    FGZ2004204 20.0 50.0 100 20 7440



    Applicability Work Material
    ★ ★ ★ Steel, Carbon steel S15C
    ★ ★ ★ Steel, Carbon steel S45C
    ★ ★ Hardened S45C
    ★ ★ Steel, Carbon steel S75C
    ★ Hardened S75C
    ★ ★ ★ Low allow steel SCM, SNCM
    ★ ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ ★★ High allow steel SKD, SKT, SKH
    ★ Hardened SKD, SKT, SKH
    ★★★ Stainless steel SUS403
    ★★★ Stainless steel SUS403
    ★★★ Stainless steel SUS304, SUS316
    ★★ Cast iron
    ★★ Nodular cast iron
    ★ Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
