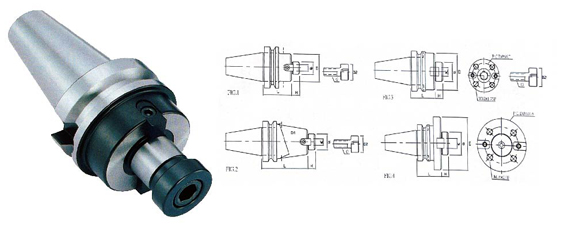

FMB Face Mill Holder

FMB Face Mill Holder
    Enlargement
    Product Name : FMB Face Mill Holder
    品號 Fig ⌀d L H G W ⌀D ⌀D1
    BT30-FMB22-45 1 22 45 18 M10 10 45 45
    BT30-FMB22-60 1 22 60 18 M10 10 45 45
    BT30-FMB27-45 1 27 45 20 M12 10 45 45
    BT30-FMB27-60 1 27 60 20 M12 10 45 45
    BT30-FMB32-60 1 32 60 21 M16 14 58 55
    BT40-FMB22-60 1 22 60 18 M10 10 45 45
    BT40-FMB22-75 1 22 75 18 M10 10 45 45
    BT40-FMB22-90 2 22 90 18 M10 10 45 45
    BT40-FMB22-105 2 22 105 18 M10 10 45 50
    BT40-FMB22-125 2 22 125 18 M10 10 45 50
    BT40-FMB22-150 2 22 150 18 M10 10 45 50
    BT40-FMB22-200 2 22 200 18 M12 10 45 50
    BT40-FMB27-60 1 27 60 20 M12 12 55 55
    BT40-FMB27-75 1 27 75 20 M12 12 55 55
    BT40-FMB27-90 2 27 90 20 M12 12 55 60
    BT40-FMB27-105 2 27 105 20 M12 12 55 60
    BT40-FMB32-60 1 32 60 21 M16 14 60 60
    BT40-FMB32-75 1 32 75 21 M16 14 60 60
    BT40-FMB32-90 1 32 90 21 M16 14 60 60
    BT40-FMB32-105 1 32 105 21 M16 14 60 60
    BT40-FMB40-60 1 40 60 23 M16 15.9 78 78
    BT50-FMB22-60 1 22 60 18 M10 10 45 45
    BT50-FMB22-75 1 22 75 18 M10 10 45 45
    BT50-FMB22-90 1 22 90 18 M10 10 45 45
    BT50-FMB22-105 2 22 105 18 M10 10 45 50
    BT50-FMB22-105(H) 2 22 105 18 M10 10 58 52
    BT50-FMB22-125 2 22 125 18 M10 10 45 50
    BT50-FMB22-150 2 22 150 18 M10 10 45 50
    BT50-FMB22-150(T) 2 22 150 18 M10 10 49 54
    BT50-FMB22-150(H) 2 22 150 18 M10 10 58 62
    BT50-FMB22-175 2 22 150 18 M10 10 45 50
    BT50-FMB22-175(H) 2 22 150 18 M10 10 49 55
    BT50-FMB22-200 2 22 200 18 M10 10 45 50
    BT50-FMB22-200(T) 2 22 200 18 M10 10 49 56
    BT50-FMB22-200(H) 2 22 200 18 M10 10 58 62
    BT50-FMB22-250 2 22 250 18 M10 10 45 50
    BT50-FMB22-250(T) 2 22 250 18 M10 10 49 56
    BT50-FMB22-250(H) 2 22 250 18 M10 10 58 62
    BT50-FMB22-300(T) 2 22 300 18 M10 10 49 62
    BT50-FMB22-300(H) 2 22 300 18 M10 10 58 62
    BT50-FMB22-350(T) 2 22 350 18 M10 10 49 62
    BT50-FMB22-350(H) 2 22 350 18 M10 10 58 62
    BT50-FMB22-400(T) 2 22 400 18 M10 10 49 62
    BT50-FMB22-400(H) 2 22 400 18 M10 10 58 62
    BT50-FMB22-450(T) 2 22 450 18 M10 10 49 62
    BT50-FMB22-450(H) 2 22 450 18 M10 10 58 62
    BT50-FMB22-500(H) 2 22 500 18 M10 10 58 62
    BT50-FMB22-600(H) 2 22 600 18 M10 10 58 62
    BT50-FMB27-60 1 27 60 20 M12 12 60 60
    BT50-FMB27-75 1 27 75 20 M12 12 60 60
    BT50-FMB27-90 1 27 90 20 M12 12 60 60
    BT50-FMB27-105 2 27 105 20 M12 12 60 65
    BT50-FMB27-125 2 27 125 20 M12 12 60 65
    BT50-FMB27-150 2 27 150 20 M12 12 60 65
    BT50-FMB27-200 2 27 200 20 M12 12 60 65
    BT50-FMB27-250 2 27 250 20 M12 12 60 65
    BT50-FMB27-300 2 27 300 20 M12 12 60 65
    BT50-FMB32-60 1 32 60 21 M16 14 70 70
    BT50-FMB32-75 1 32 75 21 M16 14 70 70
    BT50-FMB32-90 1 32 90 21 M16 14 70 75
    BT50-FMB32-105 1 32 105 21 M16 14 70 75
    BT50-FMB32-125 2 32 125 21 M16 14 70 75
    BT50-FMB32-150 2 32 150 21 M16 14 70 75
    BT50-FMB32-200 2 32 200 21 M16 14 70 75
    BT50-FMB40-60 1 40 60 23 M16 16 80 80
    BT50-FMB40-75(F) 1 40 75 23 16 80
    BT50-FMB40-75 1 40 75 23 M16 16 80 80
    BT50-FMB40-90 1 40 90 23 M16 16 80 85
    BT50-FMB40-105 1 40 105 23 M16 16 80 85
    BT50-FMB40-125 2 40 125 23 M16 16 80 85
    BT50-FMB40-150 2 40 150 23 M16 16 80 85
    BT50-FMB60-75 4 60 75 32 25.4 128
