HSS Co8 90° Single Flute Chamfer Cutter

HSS Co8 90° Single Flute Chamfer Cutter
    Enlargement
    Product Name : HSS Co8 90° Single Flute Chamfer Cutter

    Suitable for wood and hard plastics. Ideal for drilling thin plates, easy to resharpen, and ensures vibration-free machining.

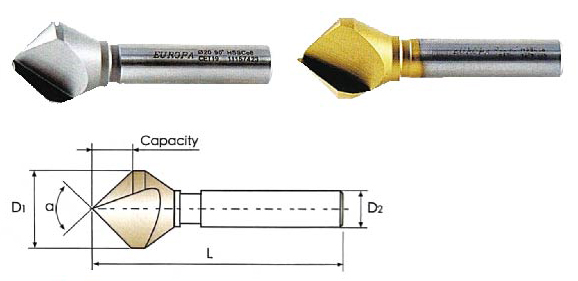

    Tool Diameter Overall Length Shank Diameter Overall Length
    10 1-10 6 45
    10 1-1 10 60
    15 2-15 8 55
    15 2-15 10 60
    20 2-20 10 65
    25 3-25 10 78
    25 3-25 12 78
    30 3-30 12 88
    35 4-35 16 110
    40 5-40 12 115
    40 5-40 16 115
    45 10-45 16 120
    50 12-50 16 130
