MC Built-In Booster Angle Lock Vise 028-10

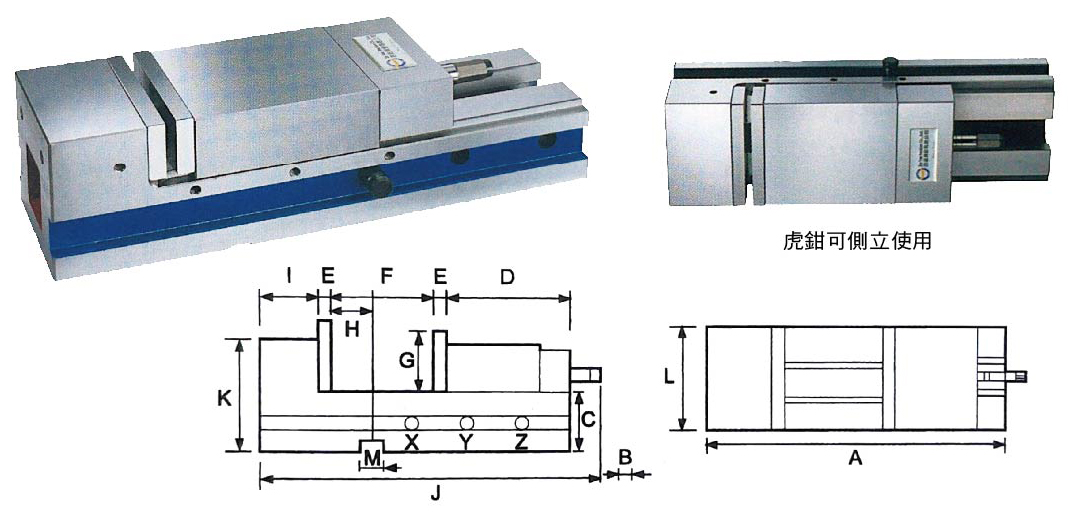

NO.	A	B	C	D	E	Clamping Range			G	H	I	J	K	L	M	F	kgf	kg
NO.	A	B	C	D	E	X	Y	Z	G	H	I	J	K	L	M	F	kgf	kg
MHA-100	404	14	62	208	12.5	0~85	85~170	–	42	45	64.5	450 540	102	105	16	50	2500	22
MHA-150	507	19	85	243	15.5	0~90	90~180	180~270	57	65	84.5	620 710	140	152	18	90	5000	50
MHA-150A	537	19	85	243	15.5	0~100	100~200	200~300	57	65	84.5	650 740	140	152	18	90	5000	52
MHA-200	606	19	95	257	18.5	0~100	100~200	200~300	62	82	89.5	655 755	162	200	18	150	7000	80
