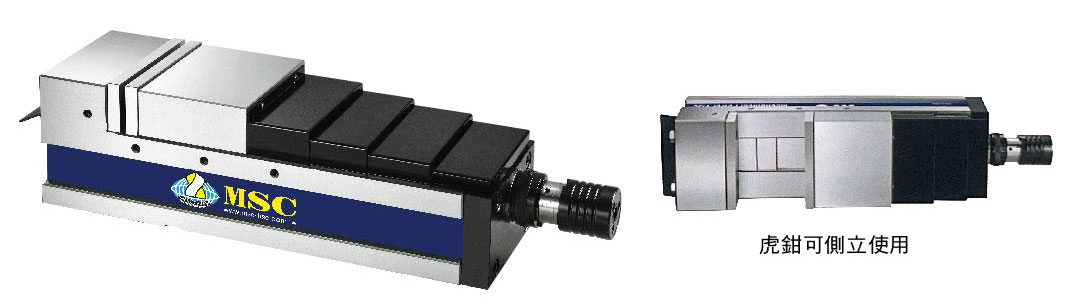

MC Constant-Pressure Power Vise

Product Features

1. The angular clamp design combined with a “hemispherical” locking force prevents workpieces from lifting.

2. Two operating modes available: booster type and mechanical type.

3. The vise body is made of FCD-60 spheroidal graphite cast iron.

4. All sliding surfaces of the vise are hardened to HRC45° for durability and precision.

5. The vise body height and positioning key slots are precisely controlled, allowing 2, 3, or 4 units to be used together.

6. Four different clamping methods are available for your selection.

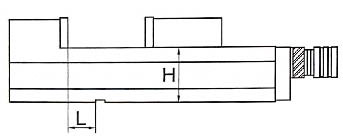

The height and positioning key slots of each vise are precision-controlled to fixed dimensions.

L-dimension tolerance: less than 0.02 mm ,H-dimension tolerance: less than 0.02 mm

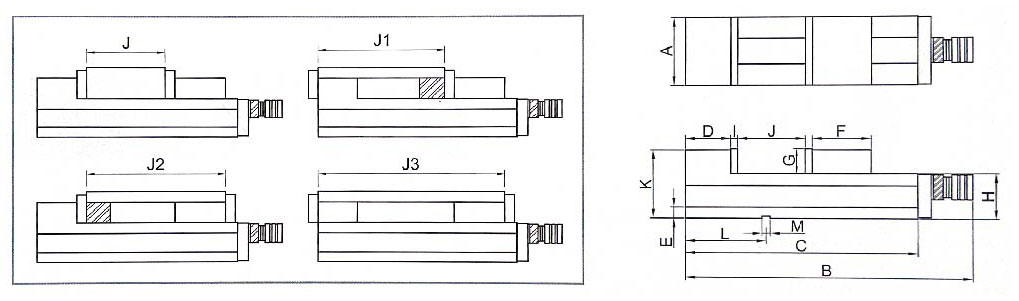

Four different clamping methods are available for your selection.
NO. A B C D E F G H I J J1 J2 J3 K L M N.W Clamping
MPV-130 132 558 423 70 25 110 54 95 15 200 200-260 200-300 200-410 147 165 18 38kg 4400kgf
MPV-160 162 632 497 85 25 130 57 105 15 240 240-315 240-360 240-470 160 165 18 59kg 5000kgf
MPV-160A 162 692 557 85 25 130 57 105 15 300 300-375 300-420 300-530 160 165 18 65kg 5000kgf
MPV-200 202 710 570 90 25 139 62 110 18 300 300-375 300-425 300-560 170 190 18 80kg 5000kgf
