MHSS-E Machine Reamer

Super Cobalt Steel Reamer Series
    Enlargement

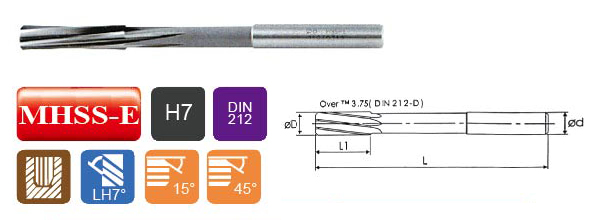

    Product Name : MHSS-E Machine Reamer

    Chamfer: 15° when Ø ≤ 3.75 mm; 45° when Ø > 3.75 mm

    Tool Diameter ⌀D Shank Diameter ⌀d L1 Overall Length L Number of Flutes N
    2.0 2 11 49 4
    2.5 2.5 14 57 4
    3.0 3 15 61 6
    3.5 3.5 18 70 6
    4.0 4 19 75 6
    4.5 4/4.5 21 80 6
    5.0 5 23 86 6
    5.5 5.5/6 26 93 6
    6.0 5.5/6.6 28 93 6
    6.5 6/6.3 28 101 6
    7.0 6/7.1 31 109 6
    7.5 6/7.1 31 109 6
    8.0 8 33 117 6
    8.5 8 33 117 6
    9.0 8/9 36 125 6
    9.5 8/9 36 125 6
    10.0 10 38 133 6
    10.5 10 38 133 6
    11.0 10 41 142 6
    12.0 10 44 151 6
    13.0 10 44 151 6
    14.0 12/12.5 47 160 8
    15.0 12/12.5 50 162 8
    16.0 12/12.5 52 170 8
    17.0 12/14 54 175 8
    18.0 12/14 56 182 8
    19.0 16 58 189 8
    20.2 16 60 195 8
