Radius Corner Modular Endmill

Radius Corner Modular Endmill
    Enlargement

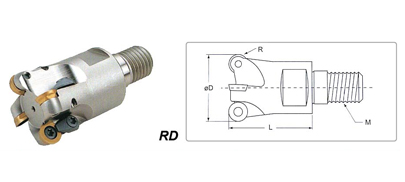

    Product Name : Radius Corner Modular Endmill

    ⌀D R M L Number of Flutes 刀片Type No 刀片螺絲 壓板 壓板螺絲 扳手
    10 2.5 M5 18 2 RDHW0501 SCR-RD2.0 – – T6
    11 2.5 M5 18 2
    12 2.5 M6 19 3
    13 2.5 M6 19 3
    16 3.5 M8 23 3 RDHW0702 SCR-RD2.5 – – T8
    17 3.5 M8 23 3
    20 3.5 M10 30 3
    21 3.5 M10 30 4
    25 3.5 M12 35 4
    25 3.5 M12 35 5
    26 3.5 M12 35 4
    35 5 M16 43 3
    35 5 M16 43 3 RDHW1003 SCR-RD3.5 CL-RD100 SCR-RD3.5 T15
    35 5 M16 43 4
