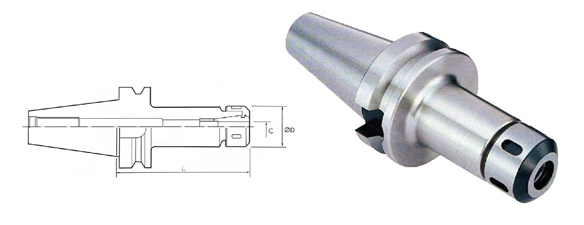

SK Precious Tool Holder
Enlargement
| Type No | ⌀D | L | C |
|---|---|---|---|
| BT30-SK06-70 | 20 | 70 | 2~6 |
| BT30-SK06-100 | 20 | 100 | 2~6 |
| BT30-SK10-70 | 35 | 70 | 2~10.3 |
| BT30-SK10-100 | 35 | 100 | 2~10.3 |
| BT30-SK13-60 | 35 | 60 | 3~12 |
| BT30-SK13-90 | 35 | 90 | 3~12 |
| BT30-SK16-70 | 46 | 70 | 4~16 |
| BT30-SK16-100 | 46 | 100 | 4~16 |
| BT30-SK25-100 | 58 | 100 | 12~25 |
| BT40-SK06-70 | 20 | 70 | 2~6 |
| BT40-SK06-100 | 20 | 100 | 2~6 |
| BT40-SK10-70 | 35 | 70 | 2~10.3 |
| BT40-SK10-100 | 35 | 100 | 2~10.3 |
| BT40-SK10(S)-100 | 30 | 100 | 2~10.3 |
| BT40-SK10-125 | 35 | 125 | 2~10.3 |
| BT40-SK10-150 | 35 | 150 | 2~10.3 |
| BT40-SK16-70 | 46 | 70 | 4~16 |
| BT40-SK16-80 | 46 | 80 | 4~16 |
| BT40-SK16-100 | 46 | 100 | 4~16 |
| BT40-SK16-125 | 46 | 125 | 4~16 |
| BT40-SK16-150 | 46 | 150 | 4~16 |
| BT40-SK25-80 | 58 | 80 | 12~25 |
| BT40-SK25-100 | 58 | 100 | 12~25 |
| BT40-SK25-125 | 58 | 125 | 12~25 |
| BT40-SK25-150 | 58 | 150 | 12~25 |
| BT50-SK10-125 | 35 | 125 | 2~10.3 |
| BT50-SK10-150 | 35 | 150 | 2~10.3 |
| BT50-SK10-200 | 35 | 200 | 2~10.3 |
| BT50-SK10(S)-150 | 30 | 150 | 2~10.3 |
| BT50-SK10(S)-200 | 30 | 200 | 2~10.3 |
| BT50-SK16-100 | 46 | 100 | 4~16 |
| BT50-SK16-125 | 46 | 125 | 4~16 |
| BT50-SK16-150 | 46 | 150 | 4~16 |
| BT50-SK25-100 | 58 | 100 | 12~25 |
| BT50-SK25-125 | 58 | 125 | 12~25 |
| BT50-SK25-150 | 58 | 150 | 12~25 |
