    Product Name : SLA Side Lock End Mill Holder

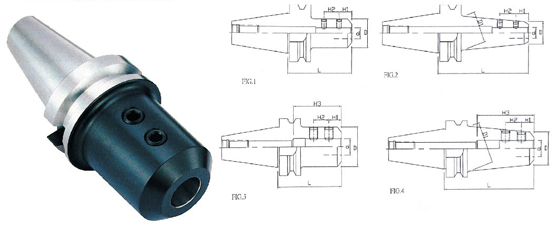

    Type No Fig ⌀d ⌀D ⌀D1 L H1 H2 H3 G
    BT30-SLA6-60 1 6 25 60 9 10 M6
    BT30-SLA8-60 2 8 30 60 12 12 M8
    BT30-SLA10-60 3 10 34 60 15 12 40 M8
    BT30-SLA12-60 3 12 38 60 18 16 46 M10
    BT30-SLA16-70 3 16 45 70 20 18 50 M10
    BT30-SLA20-75 3 20 45 75 23 20 60 M12
    BT30-SLA25-75 3 25 48 75 24 25 66 M12
    BT40-SLA6-75 1 6 25 75 9 10 M6
    BT40-SLA6-105 2 6 25 30 105 9 10 M6
    BT40-SLA6-120 2 6 20 25 120 9 10 M6
    BT40-SLA6-150 2 6 25 30 150 9 10 M6
    BT40-SLA8-75 2 8 30 75 12 12 M8
    BT40-SLA8-105 2 8 25 30 105 12 12 M8
    BT40-SLA8-120 2 8 25 32 120 12 12 M8
    BT40-SLA8-150 2 8 25 30 150 12 12 M8
    BT40-SLA10-75 3 10 34 75 15 12 M8
    BT40-SLA10-105 3 10 28 32 105 12 12 M8
    BT40-SLA10-120 2 10 28 32 120 15 12 M8
    BT40-SLA10-150 2 10 28 35 150 15 12 M8
    BT40-SLA12-75 1 12 38 75 18 16 M10
    BT40-SLA12-105 1 12 35 38 105 18 16 M10
    BT40-SLA12-120 2 12 35 40 120 18 16 M10
    BT40-SLA12-150 2 12 35 40 150 18 16 M10
    BT40-SLA16-75 4 16 45 75 20 18 50 M10
    BT40-SLA16-120 4 16 40 120 20 18 50 M10
    BT40-SLA16-150 4 16 40 150 20 18 50 M10
    BT40-SLA20-90 3 20 50 90 23 20 60 M12
    BT40-SLA20-120 3 20 47 52 120 23 20 60 M12
    BT40-SLA20-150 4 20 47 52 150 23 20 60 M12
    BT40-SLA25-90 3 25 57 90 24 25 66 M16
