SLA Extra-short Side Lock End Mill Holder

SLA Extra-short Side Lock End Mill Holder
    Enlargement

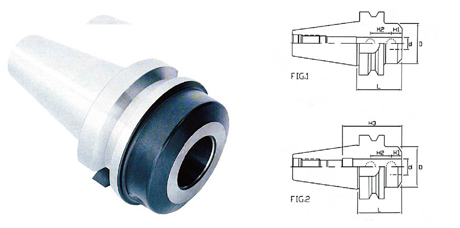

    Product Name : SLA Extra-short Side Lock End Mill Holder
    Type No Fig ⌀d ⌀D L H1 H2 H3 G
    BT40-SLA16-45 2 16 40 45 11 21 60 M10
    BT40-SLA20-45 2 20 50 45 11 21 65 M12
    BT40-SLA25-45 2 25 57 45 10 20 65 M12
    BT40-SLA32-45 2 32 60 45 10 20 55 M12
    BT50-SLA16-45 1 16 40 45 17 19 M10
    BT50-SLA16-75 1 16 40 75 20 25 M10
    BT50-SLA20-45 1 20 50 45 17 19 M12
    BT50-SLA20-75 1 20 50 75 20 25 M12
    BT50-SLA25-75 2 25 58 75 23 27 85 M16
    BT50-SLA32-75 2 32 62 75 23 29 90 M16
    BT50-SLA42-75 2 42 72 75 23 29 90 M16
