Shoulder Face Milling Cutter

Shoulder Face Milling Cutter
    Enlargement

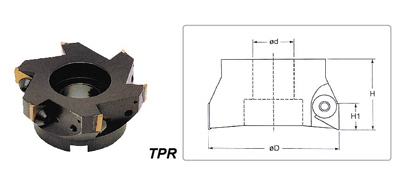

    Product Name : Shoulder Face Milling Cutter

    ⌀D ⌀D1 d* H1 H Number of Flutes 刀片Type No 刀片螺絲 墊片 墊片螺絲 扳手
    63 25.4 27 22 50 3 TPMN2204 SCR-W5/16 ST-T SCR-ST-T4 WRN-M5T
    80 25.4 27 22 50 4
    100 31.75 32 22 55 5
    125 38.1 40 22 60 6
    160 50.8 40 22 60 7
    200 47.625 60 22 60 8
    250 47.625 60 22 60 9
    300 47.625 60 22 60 10
