TSP Tseries Spiral Flute Tap

TSP Tseries Spiral Flute Tap

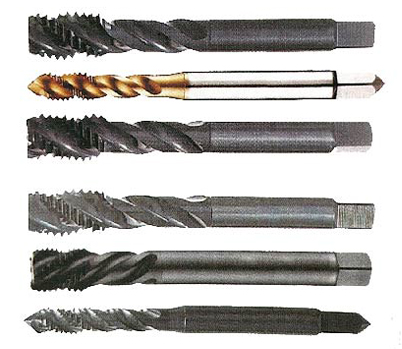

    Enlargement
    Product Name :

    ●TSP TSP Tseries Spiral Flute Tap

    ●TSP-TiN TSeries鍍鈦螺旋絲攻

    ●TSP-SUS TSeries不鏽鋼螺旋絲攻

    ●TSP-3H TSeries高硬度鋼用螺旋絲攻

    ●TSP-LH TSeries左螺旋絲攻

    ●O-TSP TSeries加大螺旋絲攻

    Metric Thread(M) Accuracy Shape & Dimensionsmm
    Overall LengthL Thread Lengthℓ Shank Diameterd
    M2.0x0.4 GT3 40 8 3
    M2.3x0.4 GT3 42 9 3
    M2.5x0.45 GT3 44 9.5 3
    M2.6x0.45 GT3 44 9.5 3
    M3.0x0.5 GT6 46 5 4
    M3.0x0.6 GT6 46 5 4
    M3.5x0.6 GT6 48 6 4
    M4.0x0.5 GT6 52 7 5
    M4.0x0.7 GT6 52 7 5
    M4.0x0.7 GT8 52 7 5
    M4.0x0.75 GT6 52 7 5
    M5.0x0.5 GT6 60 8 5.5
    M5.0x0.8 GT6 60 8 5.5
    M5.0x0.9 GT6 60 8 5.5
    M6.0x0.5 GT6 62 10 6
    M6.0x0.75 GT9 62 10 6
    M6.0x1.0 GT9 62 10 6
    M6.0x1.0 GT9 62 10 6
    M7.0x0.75 GT6 65 10 6.2
    M7.0x1.0 GT6 65 10 6.2
    M8.0x0.5 GT6 70 12 6.2
    M8.0x0.75 GT7 70 12 6.2
    M8.0x1.0 GT7 70 12 6.2
    M8.0x1.25 GT7 70 12 6.2
    M8.0x1.25 GT10 70 12 6.2
    M9.0x1.0 GT7 72 12 7
    M9.0x1.25 GT7 72 12 7
    M10x0.5 GT6 75 15 7
    M10x0.75 GT7 75 15 7
    M10x1.0 GT7 75 15 7
    M10x1.25 GT7 75 15 7
    M10x1.25 GT11 75 15 7
    M10x1.5 GT7 75 15 7
    M10x1.5 GT11 75 15 7
    M12x1.0 GT8 82 17 8.5
    M12x1.25 GT8 82 17 8.5
    M12x1.25 GT12 82 17 8.5
    M12x1.5 GT8 82 17 8.5
    M12x1.5 GT12 82 17 8.5
    M12x1.75 GT8 82 17 8.5
    M12x1.75 GT12 82 17 8.5
    M14x1.0 GT8 88 20 10.5
    M14x1.25 GT8 88 20 10.5
    M14x1.5 GT8 88 20 10.5
    M14x2.0 GT8 88 20 10.5
    M15x1.5 GT8 90 20 10.5
    M16x1.0 GT8 95 20 12.5
    M16x1.5 GT8 95 20 12.5
    M16x2.0 GT8 95 20 12.5
    M17x1.0 GT8 95 25 13.0
    M17x1.5 GT8 95 25 13.0
    M18x1.0 GT8 100 25 14.0
    M18x1.5 GT8 100 25 14.0
    M18x2.0 GT9 100 25 14.0
    M18x2.5 GT9 100 25 14.0
    M20x1.0 GT8 105 25 15.0
    M20x1.5 GT8 105 25 15.0
    M20x2.0 GT9 105 25 15.0
    M20x2.5 GT9 105 25 15
    M22x1.0 GT9 115 25 17
    M22x1.5 GT8 115 25 17
    M22x2.0 GT9 115 25 17
    M22x2.5 GT9 115 25 17
    M24x1.0 GT8 120 30 19
    M24x1.5 GT8 120 30 19
    M24x2.0 GT9 120 30 19
    M24x3.0 GT9 120 30 19
    M25x1.5 GT8 125 30 19
    M25x2.0 GT9 125 30 19
    M26x1.5 GT9 125 30 19
    M27x1.0 GT9 130 30 20
    M27x1.5 GT9 130 30 20
    M27x2.0 GT9 130 30 20
    M27x3.0 GT9 130 30 20
    M28x1.5 GT9 130 30 21
    M28x2.0 GT9 130 30 21
    M30x1.5 GT9 135 35 23
    M30x3.5 GT9 135 35 23
