    Product Name : Super Cobalt Steel Reamer Series

    Suitable for machining general steel, mold steel, alloy steel, cast iron, aluminum alloys, and other non-ferrous metals.

    Helix angle：7°

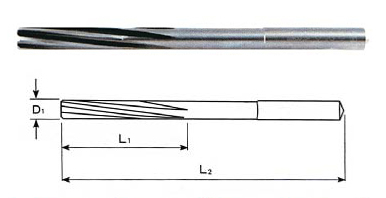

    Tool Diameter D1 Flute Length L1 Overall Length L2 Number of Flutes N Tool Diameter D1 Flute Length L1 Overall Length L2 Number of Flutes N Tool Diameter D1 Flute Length L1 Overall Length L2 Number of Flutes N
    1.0 5.5 36 4 3.0 15 61 4 4.9 23 86 6
    1.1 6.5 36 4 3.1 16 65 4 5.0 23 86 6
    1.2 7.5 36 4 3.2 16 65 4 5.1 23 86 6
    1.3 7.5 36 4 3.3 16 65 4 5.2 23 86 6
    1.4 8 43 4 3.4 18 70 4 5.3 23 86 6
    1.5 8 43 4 3.5 18 70 4 5.4 26 93 6
    1.6 9 43 4 3.6 18 70 4 5.5 26 93 6
    1.7 9 43 4 3.7 18 70 4 5.6 26 93 6
    1.8 10 46 4 3.8 18 70 4 5.7 26 93 6
    1.9 10 46 4 3.9 19 75 4 5.8 26 93 6
    2.0 14 49 4 4.0 19 75 4 5.9 26 93 6
    2.1 14 49 4 4.1 19 75 4 6.0 26 93 6
    2.2 14 57 4 4.2 19 75 4 6.1 28 101 6
    2.3 14 57 4 4.3 21 80 4 6.2 28 101 6
    2.4 14 57 4 4.4 21 80 4 6.3 28 101 6
    2.5 14 57 4 4.53 21 80 4 6.4 28 101 6
    2.6 14 57 4 4.6 21 80 4 6.5 28 101 6
    2.7 15 61 4 4.7 21 80 4 6.6 28 101 6
    2.8 15 61 4 4.8 23 86 4 6.7 28 101 6
    2.9 15 61 4

    Tool Diameter D1 Flute Length L1 Overall Length L2 Number of Flutes N Tool Diameter D1 Flute Length L1 Overall Length L2 Number of Flutes N Tool Diameter D1 Flute Length L1 Overall Length L2 Number of Flutes N
    6.8 31 109 6 8.7 36 125 6 10.6 38 133 6
    6.9 31 109 6 8.8 36 125 6 10.7 44 142 6
    7.0 31 109 6 8.9 36 125 6 10.8 44 142 6
    7.1 31 109 6 9.0 36 125 6 10.9 44 142 6
    7.2 31 109 6 9.1 36 125 6 11.0 44 142 6
    7.3 31 109 6 9.2 36 125 6 11.1 44 142 6
    7.4 31 109 6 9.3 36 125 6 11.2 44 142 6
    7.5 31 109 6 9.4 36 125 6 11.3 44 142 6
    7.6 31 109 6 9.5 36 125 6 11.4 44 142 6
    7.7 33 117 6 9.6 36 125 6 11.5 44 142 6
    7.8 33 117 6 9.7 38 133 6 11.6 44 142 6
    7.9 33 117 6 9.8 38 133 6 11.7 44 142 6
    8.0 33 117 6 9.9 38 133 6 11.8 44 142 6
    8.1 33 117 6 10.0 38 133 6 11.9 44 151 6
    8.2 33 117 6 10.1 38 133 6 12.0 44 151 6
    8.3 33 117 6 10.2 38 133 6 12.5 44 151 6
    8.4 33 117 6 10.3 38 133 6 12.7 44 151 6
    8.5 33 117 6 10.4 38 133 6 12.8 44 151 6
    8.6 33 117 6 10.5 38 133 6 13.0 44 151 6

    m/m
