UBA 2-flutes Super Micro Grain Ball End Mills

UBA 2-flutes Super Micro Grain Ball End Mills
    Enlargement

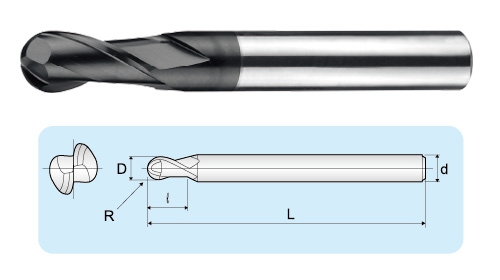

    Product Name : UBA 2-flutes Super Micro Grain Ball End Mills
    Product Description

    FEATURES:

    Goof at High Speed and hardness cutting. It may achieve best above HRC60. With benefits of fracture resistance and strong edge.

    Product Introduction

    Type No Diameter(D) Flute Length (l) O. A. L.(L) Shank Dia(d) Price
    UBA0041042 0.2 R 0.8 50 4 1350
    UBA0061042 0.3 R 1.2 50 4 1350
    UBA0081042 0.4 R 1.6 50 4 1350
    UBA0101042 0.5 R 2.0 50 4 600
    UBA0151042 0.75 R 3.0 50 4 600
    UBA0201042 1.0 R 4.0 50 4 600
    UBA0251042 1.25 R 5.0 50 4 600
    UBA0301042 1.5 R 6.0 50 4 600
    UBA0401042 2.0 R 8.0 50 4 600
    UBA0601042 3.0 R 12.0 50 6 725
    UBA0802082 4.0 R 16.0 60 8 1430
    UBA1003102 5.0 R 20.0 75 10 2100
    UBA1203122 6.0 R 24.0 75 12 2950



    Applicability Work Material
    ★ ★ ★ Steel,Carbon steel S15C
    ★ ★ ★ Steel,Carbon steel S45C
    ★ ★ Hardened S45C
    ★ ★ Steel,Carbon steel S75C
    ★ Hardened S75C
    ★ ★ ★ Low allow steel SCM, SNCM
    ★ ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ Hardened SCM, SNCM
    ★ ★ ★ High allow steel SKD,SKT,SKH
    ★ Hardened SKD,SKT,SKH
    ★ ★ ★ Stainless steel SUS403
    ★ ★ ★ Stainless steel SUS403
    ★ ★ ★ Stainless steel SUS304, SUS316
    ★ ★ Cast iron
    ★ ★ Nodular cast iron
    ★ Exotic material
    ★ Aluminum
    ★ Aluminum alloy

    ★ ★ ★Excellent     ★ ★ Good     ★General
