Ultra Cobalt Long-Flute End Mill - 4 Flutes

Ultra Cobalt Long-Flute End Mill - 4 Flutes
    Enlargement

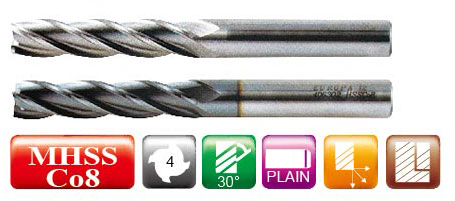

    Product Name : Ultra Cobalt Long-Flute End Mill - 4 Flutes

    FEATURES:

    Suitable for general machining such as slotting, side milling, and mold processing. The 4-flute design is used for slot milling.

    Tool Diameter Shank Diameter Flute Length Overall Length
    2.0 6 10 60
    3.0 6 15 60
    4.0 6 20 65
    5.0 8 25 75
    6.0 8 25 75
    7.0 10 35 90
    8.0 10 35 90
    9.0 10 45 100
    10.0 10 45 100
    11.0 12 55 115
    12.0 12 55 115
    13.0 12 55 115
    14.0 16 55 120
    15.0 16 65 130
    16.0 16 65 130
    17.0 16 65 130
    18.0 16 65 130
    19.0 20 75 145
    20.0 20 75 145
    21.0 20 75 145
    22.0 20 75 145
    23.0 25 90 165
    24.0 25 90 165
    25.0 25 90 165
    26.0 25 90 165
    27.0 25 90 165
    28.0 25 90 165
    29.0 25 90 165
    30.0 25 90 165

    m/m
