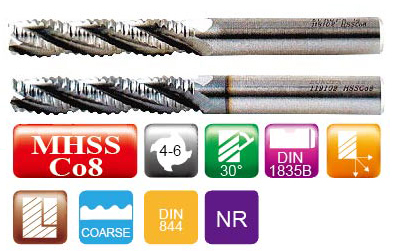

    Product Name : Ultra Cobalt Long-Flute Roughing End Mill

    FEATURES:

    This general-purpose roughing end mill is a metal cutting tool designed for high productivity, suitable for cutting carbon steel and alloy steel.

    Tool Diameter Shank Diameter Flute Length Overall Length Number of Flutes
    10.0 10 45 95 4
    12.0 12 53 110 4
    14.0 12 53 110 4
    16.0 16 63 123 4
    18.0 16 63 123 4
    20.0 20 75 141 4
    22.0 20 75 141 5
    25.0 25 90 166 5
    30.0 25 90 166 6

    m/m

    Tool Diameter
    Shank Diameter公差
    1～3 3～6 6～10 10～18 18～30 30～50
    Cutting Edge js12 ±50 ±60 ±75 ±90 ±105 ±125
    Shank Diameter h6 0 0 0 0 0 0
    -6 -8 -9 -11 -13 -16
