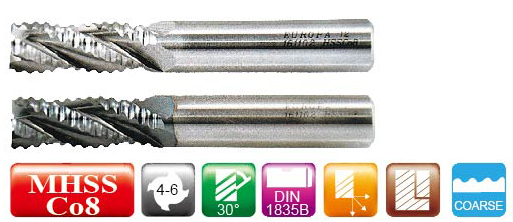

Cobalt High-Speed Steel Roughing End Mill

Cobalt High-Speed Steel Roughing End Mill
    Enlargement
    Product Name : Cobalt High-Speed Steel Roughing End Mill

    FEATURES:

    This general-purpose roughing end mill is a metal cutting tool designed for high productivity, suitable for cutting carbon steel and alloy steel.

    Tool Diameter Shank Diameter Flute Length Overall Length Number of Flutes
    6.0 8 15 60 4
    7.0 10 20 65 4
    8.0 10 20 65 4
    9.0 12 25 75 4
    10.0 10 25 75 4
    10.0 12 25 75 4
    11.0 12 30 80 4
    12.0 12 30 80 4
    13.0 16 35 90 4
    14.0 16 35 90 4
    15.0 16 40 95 4
    16.0 16 40 95 4
    17.0 20 40 105 4
    18.0 20 40 105 4
    19.0 20 45 110 4
    20.0 20 45 110 4
    22.0 20 45 110 5
    24.0 25 50 120 5
    25.0 25 50 120 5
    28.0 25 55 125 6
    30.0 25 55 125 6
    32.0 32 60 145 6

    m/m

    Tool Diameter
    Shank Diameter公差
    1～3 3～6 6～10 10～18 18～30 30～50
    Cutting Edge js12 ±50 ±60 ±75 ±90 ±105 ±125
    Shank Diameter h6 0 0 0 0 0 0
    -6 -8 -9 -11 -13 -16
