Standard Cobalt High-Speed Steel End Mill- 2-flute

Standard Cobalt High-Speed Steel End Mill- 2-flute
    Enlargement

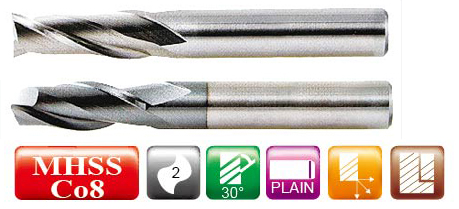

    Product Name : Standard Cobalt High-Speed Steel End Mill- 2-flute

    FEATURES:

    。Suitable for general machining such as slotting, side milling, and mold processing. The 2-flute design is used for slot milling.

    Tool Diameter Shank Diameter Flute Length Overall Length
    1.0 6 2.5 55
    1.5 6 4 55
    2.0 6 5 55
    2.5 6 7 55
    3.0 6 8 55
    3.5 8 12 60
    4.0 6 12 65
    4.0 8 12 60
    4.5 8 15 65
    5.0 8 15 65
    5.5 8 15 65
    6.0 6 15 60
    6.0 8 15 65
    6.5 10 20 75
    7.0 10 20 75
    7.5 10 20 75
    8.0 10 21 75
    8.5 10 25 80
    9.0 10 25 80
    9.5 10 25 80
    10.0 10 26 80
    10.5 12 30 90
    11.0 12 30 90
    11.5 12 30 90
    12.0 12 30 90
    12.5 16 35 95
    14.0 16 35 100
    15.0 16 40 105
    16.0 16 40 105
    17.0 16 40 105
    18.0 16 40 105
    19.0 20 45 115
    20.0 20 45 115
    21.0 20 45 115
    22.0 20 45 115
    23.0 25 50 125
    24.0 25 50 125
    25.0 25 50 125
    26.0 25 50 125
    27.0 25 55 120
    28.0 25 55 125
    29.0 25 55 125
    30.0 25 55 105
    31.0 32 60 145
    32.0 32 60 145
    33.0 32 60 145
    34.0 32 60 145
    35.0 32 60 145
    36.0 32 65 150
    37.0 32 65 150
    38.0 32 65 150
    39.0 32 65 150
    40.0 32 65 150

    m/m
