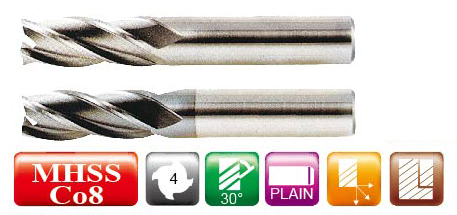

    Product Name : Standard Cobalt High-Speed Steel End Mill- 4-flute

    FEATURES:

    Suitable for general machining such as slotting, side milling, and mold processing. The 4-flute design is used for slot milling.

    Tool Diameter Shank Diameter Flute Length Overall Length
    1.5 6 7 50
    2.0 6 10 50
    2.5 6 10 50
    3.0 6 10 50
    3.5 8 12 60
    4.0 8 12 60
    4.5 8 15 60
    5.0 8 15 60
    5.5 8 15 60
    6.0 8 15 60
    7.0 10 20 60
    8.0 10 25 70
    9.0 10 25 70
    10.0 10 30 80
    11.0 12 30 80
    12.0 12 30 80
    13.0 12 35 85
    14.0 12 35 85
    15.0 16 40 95
    16.0 16 40 95
    17.0 16 40 95
    18.0 16 40 95
    19.0 20 45 110
    20.0 20 45 110
    21.0 20 45 110
    22.0 20 45 110
    23.0 25 50 120
    24.0 25 50 120
    25.0 25 50 120
    26.0 25 50 120
    27.0 25 55 125
    28.0 25 55 125
    29.0 25 55 125
    30.0 25 55 125
    31.0 32 60 145
    32.0 32 60 145
    33.0 32 60 145
    34.0 32 60 145
    35.0 32 65 150
    36.0 32 65 150
    37.0 32 65 150
    38.0 32 65 150
    39.0 32 65 150
    40.0 32 65 150

    m/m
