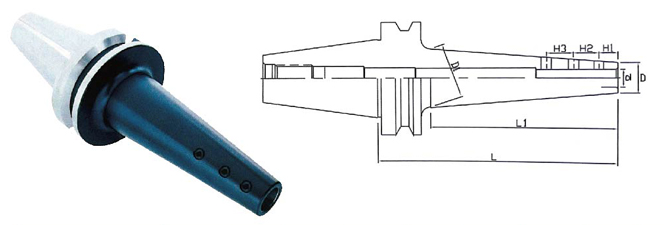

SLP 側固定式刀把
點小圖放大圖| 品號 | ⌀d | ⌀D | ⌀D1 | L | L1 | H1 | H2 | H3 | G |
|---|---|---|---|---|---|---|---|---|---|
| BT50-SLP10-200 | 10 | 17 | 42 | 200 | 152 | 15 | 20 | M6 | |
| BT50-SLP12-200 | 12 | 22 | 47.9 | 200 | 154 | 15 | 16 | 16 | M8 |
| BT50-SLP12-250 | 12 | 22 | 54.6 | 250 | 204 | 15 | 16 | 16 | M8 |
| BT50-SLP16-200 | 16 | 26 | 51.6 | 200 | 154 | 15 | 20 | 22 | M8 |
| BT50-SLP16-250 | 16 | 26 | 58.6 | 250 | 204 | 15 | 20 | 22 | M8 |
| BT50-SLP20-200 | 20 | 30 | 55.6 | 200 | 154 | 15 | 20 | 25 | M8 |
| BT50-SLP20-250 | 20 | 30 | 62.6 | 250 | 204 | 15 | 20 | 25 | M8 |
